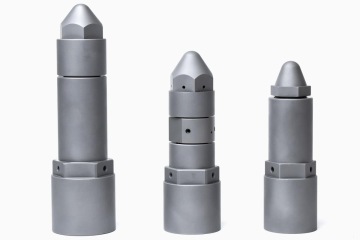

Injection nozzles

Nozzles corresponding to the solutions used by injection molding machine manufacturers

• Depending on customer requirements - pneumatically or hydraulically driven nozzles. Provides precise control of opening and closing of the plastic melt path into the mold
• Reduce cycle time
• Prevents air pockets during screw rotation - scooping
• Increased process reliability and repeatability
• Usefulness at increased back pressure – better plasticisation
• Not suitable for long glass fibre material
• Not suitable for PVC

• Nozzle controlled by spring force, opened directly by injection pressure. Prevents plastic from escaping from the nozzle
• A simple solution at an optimal price
• Can be used with increased back pressure
• Quick installation
• Not suitable for long glass fibre material
• Not suitable for PVC, PPS

• Uses more advanced fluid mechanics properties. The plasticized plastic passes through a spiral type mixer, causing the plastic jet to split and merge back onto the angled blades. This action forces the mixer to rotate, in result causing the plastic to spin.
• Increased mixing effect
• Pressure drop below 5%
• Easy colour change
• Self-cleaning function
• Long service life
• Can be replaced for an ordinary nozzle
• Can be used on any machine

• The main task of the nozzle is to filter out impurities in the range of 0.5 - 3 mm (depending on the filter size) with a relatively low pressure drop. In addition, it also improves colours mixing.
• Blocks contaminants
• Pressure drop below 3%
• Filters with different degrees of filtration available
• Protection of hot runner system
